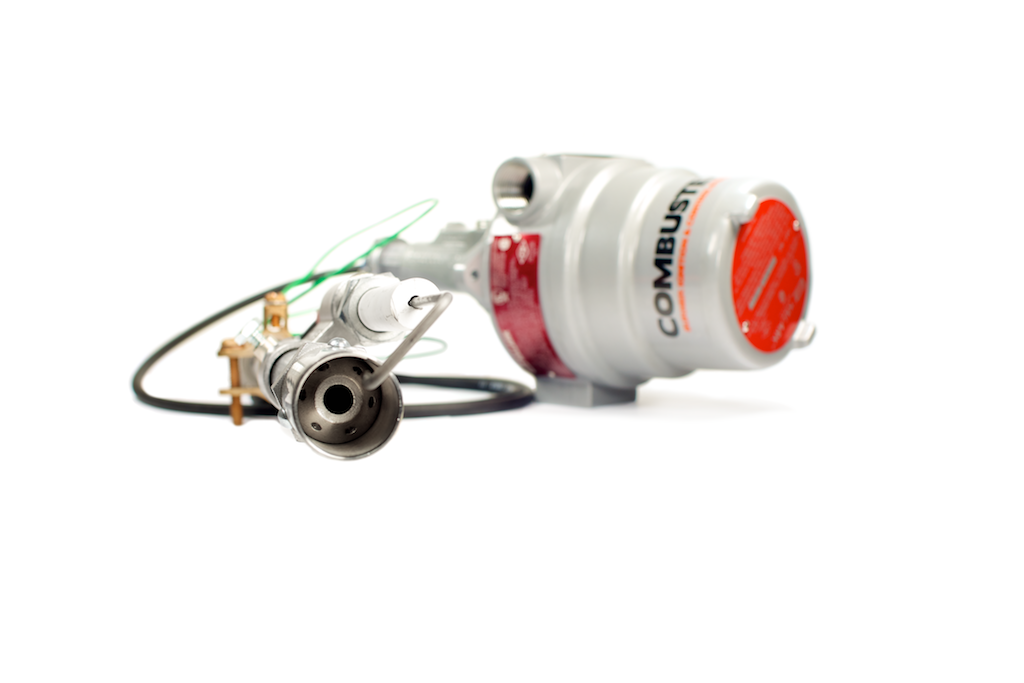

Pilot Pro™ 900

Ignition System with Pilot Tip and Flame Sensor

Get the most out of your burner management system. The Pilot Pro™ 900 igniter provides safe and reliable burner ignition, utilizing Ionization Current Flame Detection for rapid flame response and includes an LED flame status indicator on the electronics module.

Key Features

  • Strong, Reliable Ignition & Pilot Flame
  • Rapid Flame Response
  • LED Flame Status Indicator
  • Fully Protected Ignition Lead with Optional High Temp. Sheath
  • Low Fuel Gas Consumption
  • Robust Aluminum & Stainless Steel Construction
  • Rated for Class 1, Div. 2 Hazardous Locations
  • B149.3 Compliance *

Specifications

Electrical
EnvironmentCSA C22.2 Class 1 Div. 2
Groups B, C and D Hazardous Locations
Power Supply24 VDC
Current Draw75mA (normal operation)
Ignition25 KV
Fuel Gas
Fuel TypeNatural Gas or Propane
Working Pressure7 -9 Psi
Maximum Test Pressure15 Psi
Fuel Consumption8 SCFH, 16,500 BTU/Hr. (nat. gas)
Physical
Operating Temperature-40° to +40° C
Materials and PartsAluminum, SS
Supply Port1/8" NPT
Mounting1/2" NPT Close Nipple / Meyers Hub
* When installed with a BMS-2000 Series Burner Management System
