Pilot Pro™ 500 Info Sheet

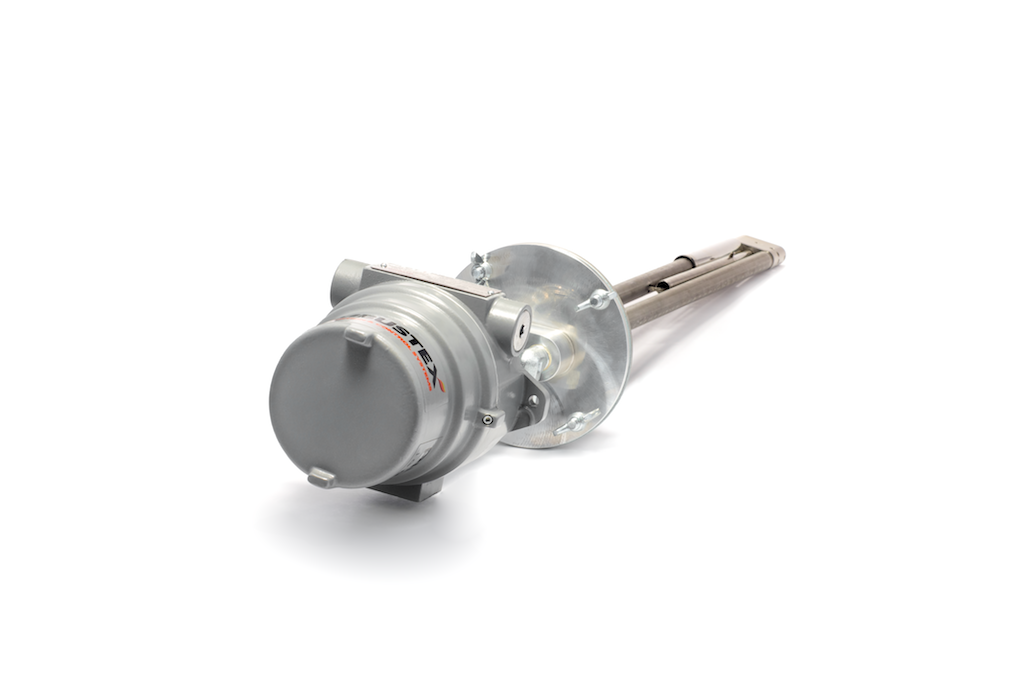

Pilot Pro™ 500
Ignition System with Pilot Tip and Flame Sensor
These units offer easy installation, maintenance and flame status reporting, and can be initiated both locally and remotely. With the Pilot Pro™ 500, you can maximize operational efficiency while keeping burner ignition safe and reliable.
Key Features
- Unique 316 SS Pilot Head Assembly

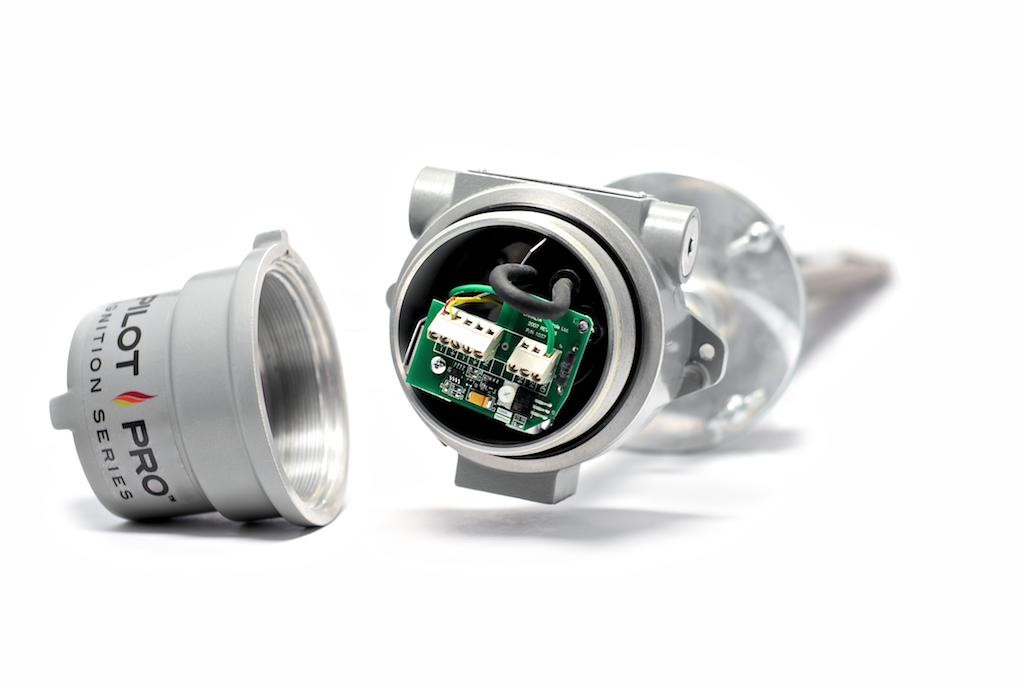

- “Hot” Electronic Ignition

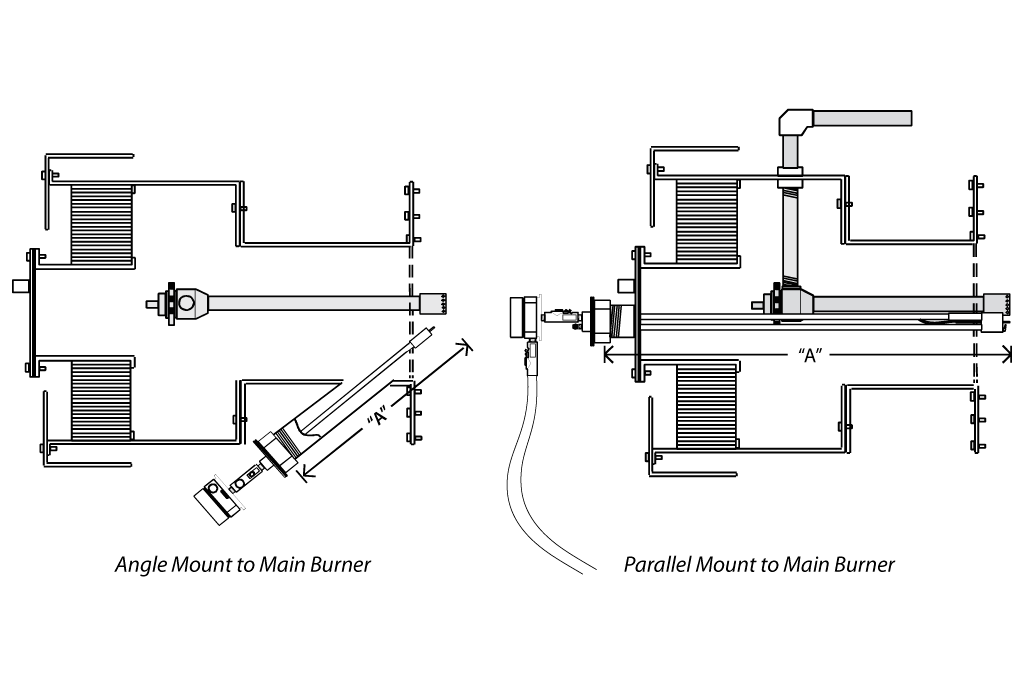

- Retractable assembly easily installs through a standard 2” or 3” nipple. Easily removed for inspection
- High temperature ignition lead is fully protected with 316 SS conduit
- Local or remote spark ignition
- Low fuel gas consumption
- Easily incorporated system flame status reporting for burner management
Specifications
Electrical
| Environment | CSA C22.2 Class 1 Div. 2 Groups B, C and D Hazardous Locations |
| Power Supply | 12 - 30 VDC |
| Current Draw | 40mA (ignition), 0mA (normal operation) |
| Ignition | 25 KV |
Fuel Gas
| Fuel Type | Natural Gas or Propane |
| Working Pressure | 1 Psi (natural gas), 0.5 Psi (propane) |
| Maximum Test Pressure | 25 Psi |
| Fuel Consumption | 8 SCFH, 22000 BTU/Hr. |
Physical
| Materials and Parts | Aluminum, SS |
| Supply Port | 3/8" Tubing |
| Mounting | 2" or 3" NPT Nipple |
| Insertion Length | 12" through 72" |
