Pilot Pro™ 800 Info Sheet
Pilot Pro™ 800

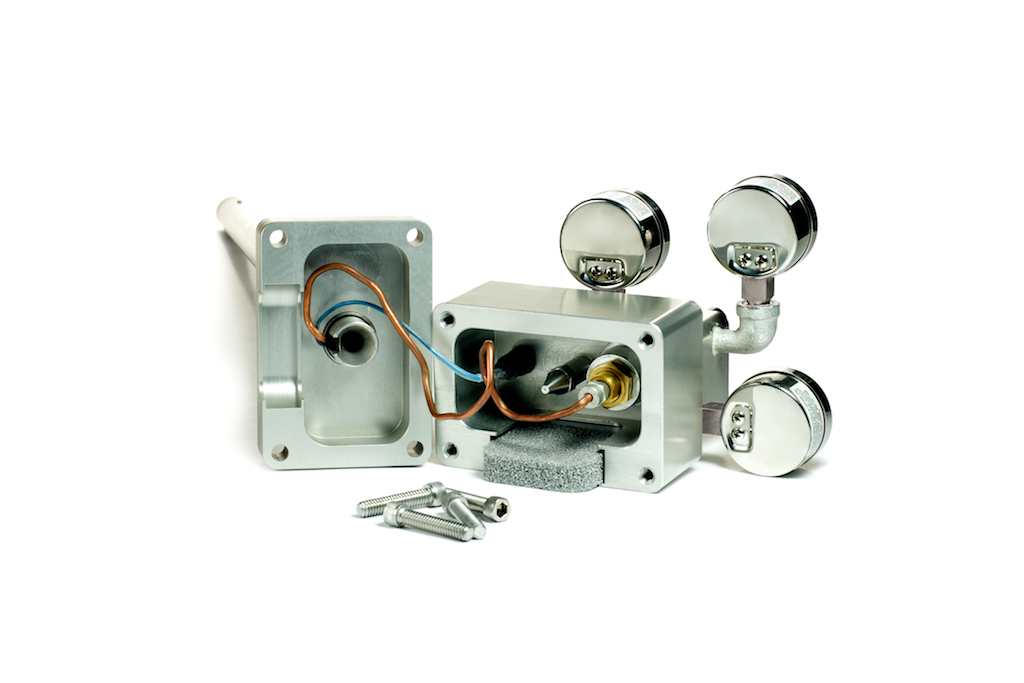

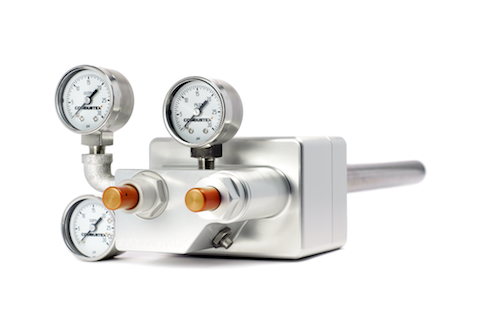

PILOT BURNER ASSEMBLY WITH IGNITION & FLAME FAILURE MONITOR
The Pilot Pro™ 800 provides safe, economical and reliable burner control on most industrial gas fired heater applications. This standalone pilot is ideal for line heaters, dehydrating and de-ethanizing reboilers, treaters, reboilers and many other gas fired industrial heaters in remote locations.
Key Features
- Heavy-duty low temperature piezo electric igniter, providing reliable self-powered ignition.
- Failsafe thermocouple-powered gas valve ensures the pilot flame is proven before the main fuel valve will open.
- Integral Venturi System aspirates combustion air through a built-in flame arrester.
- Built-in automatic lockout eliminates the need for costly auxiliary controls

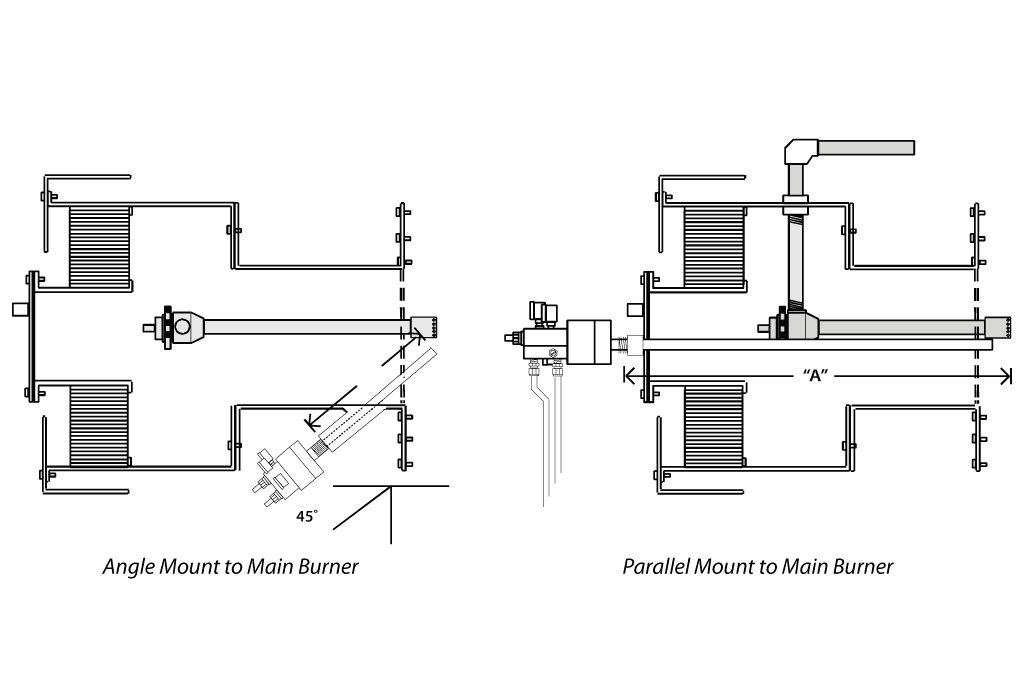

- Unique 316 SS pilot assembly easily installs and retracts through a standard 1” NPT collar.
- Low fuel consumption design enables feasible natural gas or propane-based operation.
- Stainless steel and aluminum construction.
- High temperature Mica Ignition lead channeled through the mixing tube eliminates lead deterioration.
Specifications
Electrical
| Environment | CSA C22.2 Class 1 Div. 2 Hazardous Locations |
| Power | Self-powered - 30mV Thermopile |
| Ignition | 15KV Low Temperature Piezo |
Fuel Gas
| Supply Pressure | Filtered 20PSI Natural Gas or Propane |
| Pilot Fuel Consumption | 7 SCFH, 7000 BTU/Hr. |
| Working Pressure | 5 - 30 Psi |
| Fuel Consumption | 8 SCFH, 16,500 BTU/Hr. (nat. gas) |
| Main Gas Direct Feed | 750,000 BTU/Hr. |
Physical
| Operating Temperature | -40° to +40° C |
| Materials and Parts | Anodized Aluminum, 316 SS |
| Valve Seals | Buna N Standard, Viton Optional |
| Gauge Ports | 1/8" NPT |
| Supply / Output Ports | 1/4” NPT |
| Mounting | 1" Male NPT |
| Insertion Length | Multiples of 1 ft. or Custome Built |
