Pilot Pro™ 550 Info Sheet

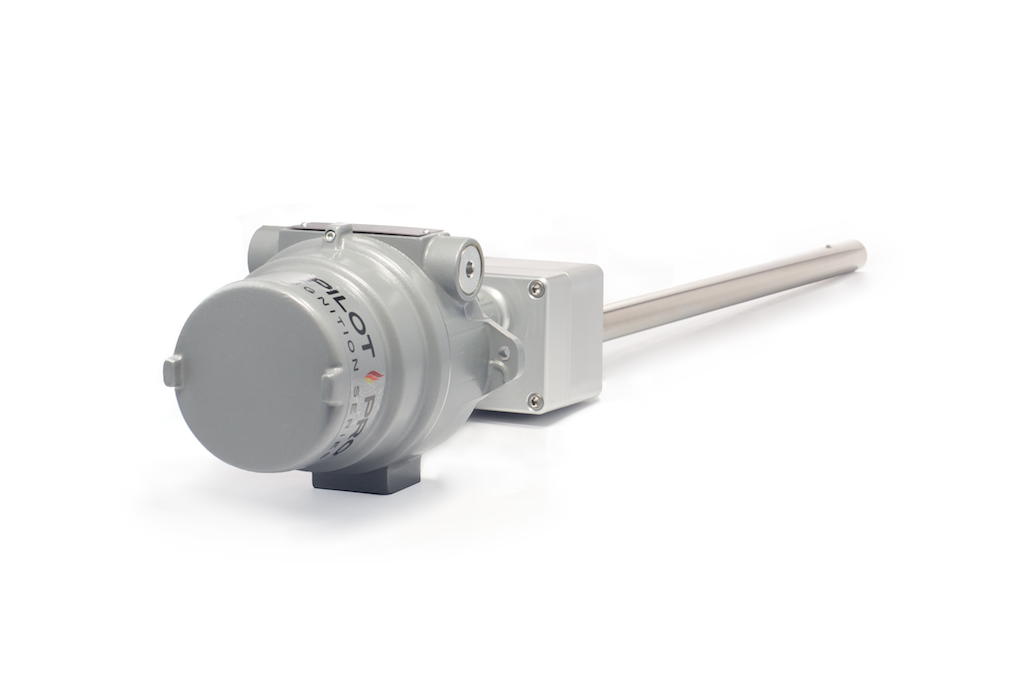

Pilot Pro™ 550
IGNITION SYSTEM WITH PILOT TIP AND FLAME SENSOR

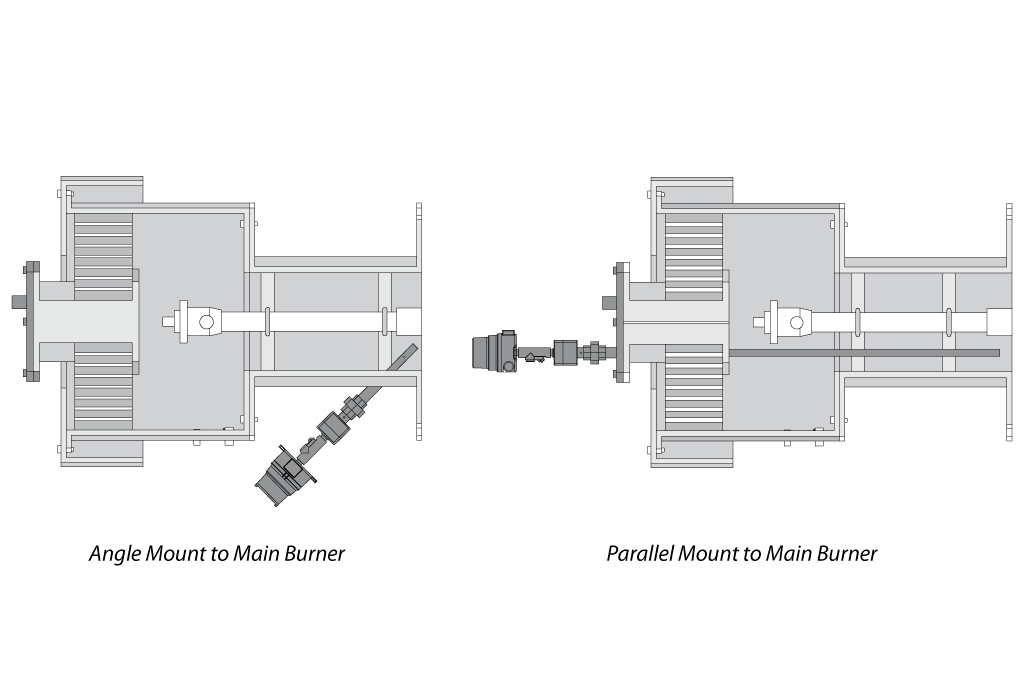

Ionization Current Flame Detection provides the Pilot Pro™ 550 with rapid flame response and B149.3 compliance*. These units are mounted external to the fire tube for easy maintenance.
Key Features
- Strong, Reliable Ignition & Pilot Flame
- Rapid Flame Response
- LED Flame Status Indicator
- Fully Protected Ignition Lead with Optional High Temp. Sheath
- Low Fuel Gas Consumption
- Robust Aluminum & Stainless Steel Construction
- Rated for Class 1, Div. 2 Hazardous Locations
- B149.3 Compliance *
Specifications
Electrical
| Environment | CSA C22.2 Class 1 Div. 2 Groups B, C and D Hazardous Locations |
| Power Supply | 24 VDC |
| Current Draw | 75mA (normal operation) |
| Ignition | 25 KV |
Fuel Gas
| Fuel Type | Natural Gas or Propane |
| Working Pressure | 7 -9 Psi |
| Maximum Test Pressure | 15 Psi |
| Fuel Consumption | 8 SCFH, 16,500 BTU/Hr. (nat. gas) |
Physical
| Operating Temperature | -40° to +40° C |
| Materials and Parts | Aluminum, SS |
| Supply Port | 1/8" NPT |
| Mounting | 1/2" NPT Close Nipple / Meyers Hub |
* When installed with a BMS-2000 Series Burner Management System
